项目地址：svn://www.kittybunny.cn/kitty/3%20ideas/ssm 用户名密码：reader/reader

一、创建父工程

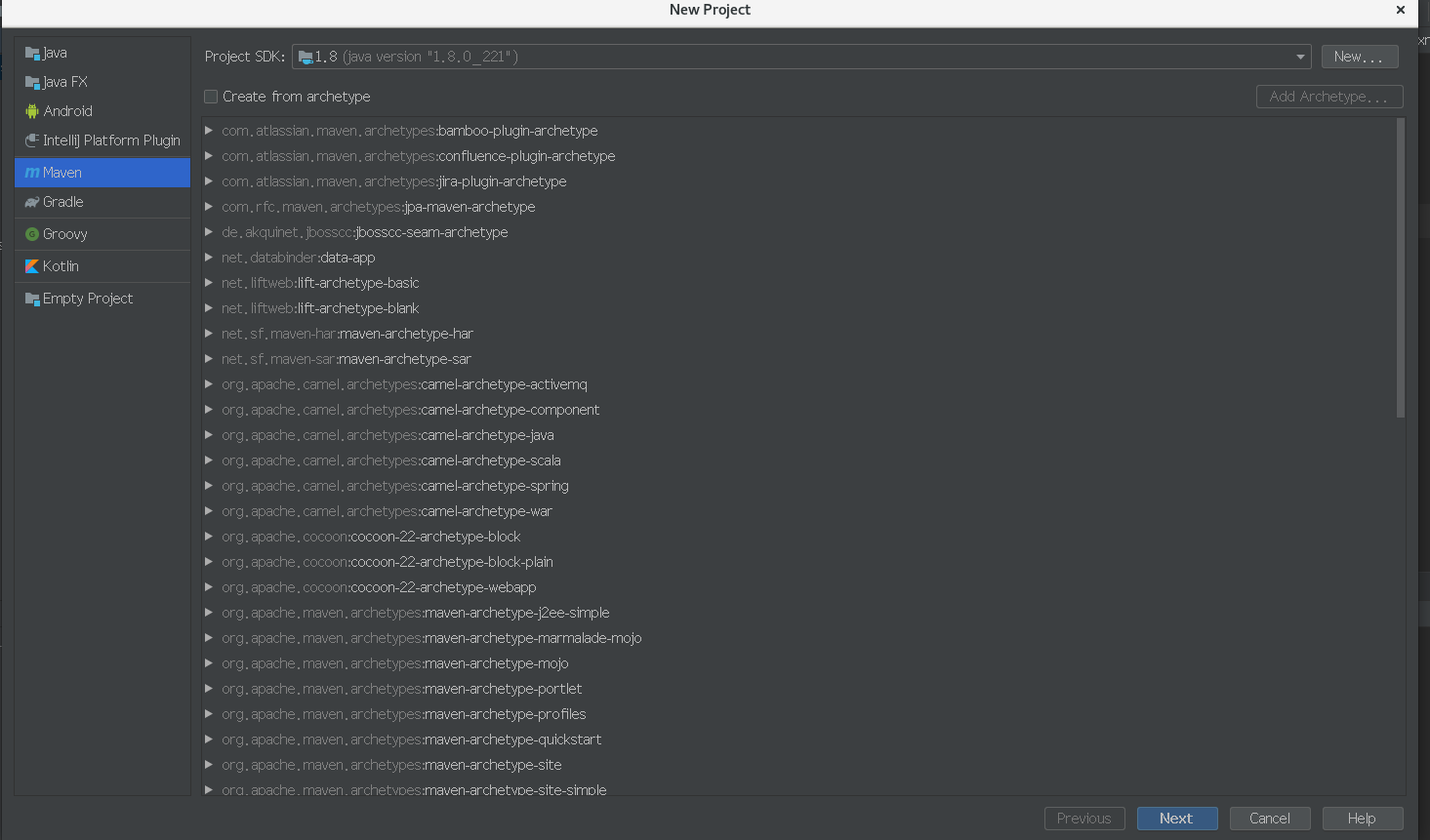

创建一个maven项目
Alt text

直接下一步，
Alt text

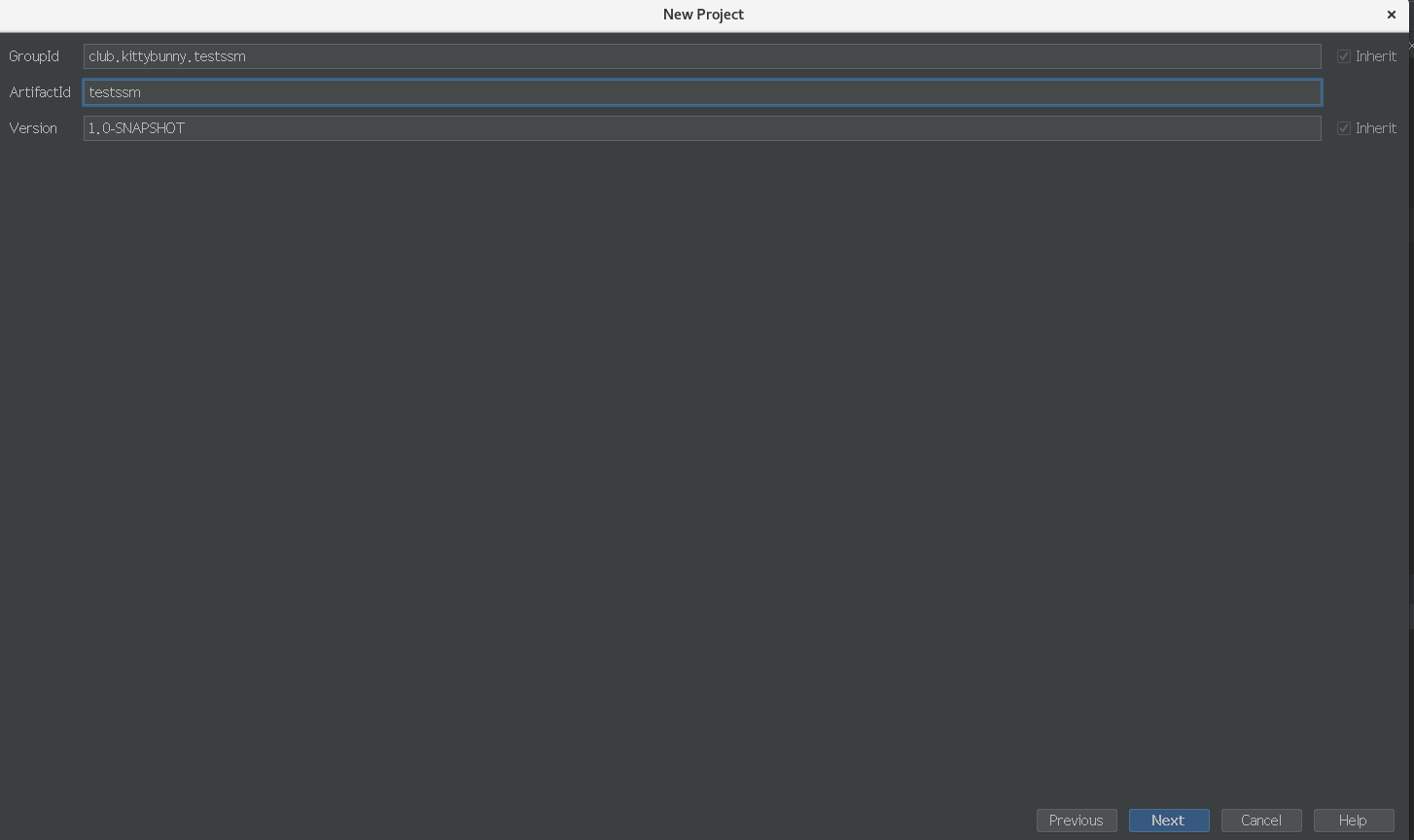

填写主要信息，然后下一步，
Alt text

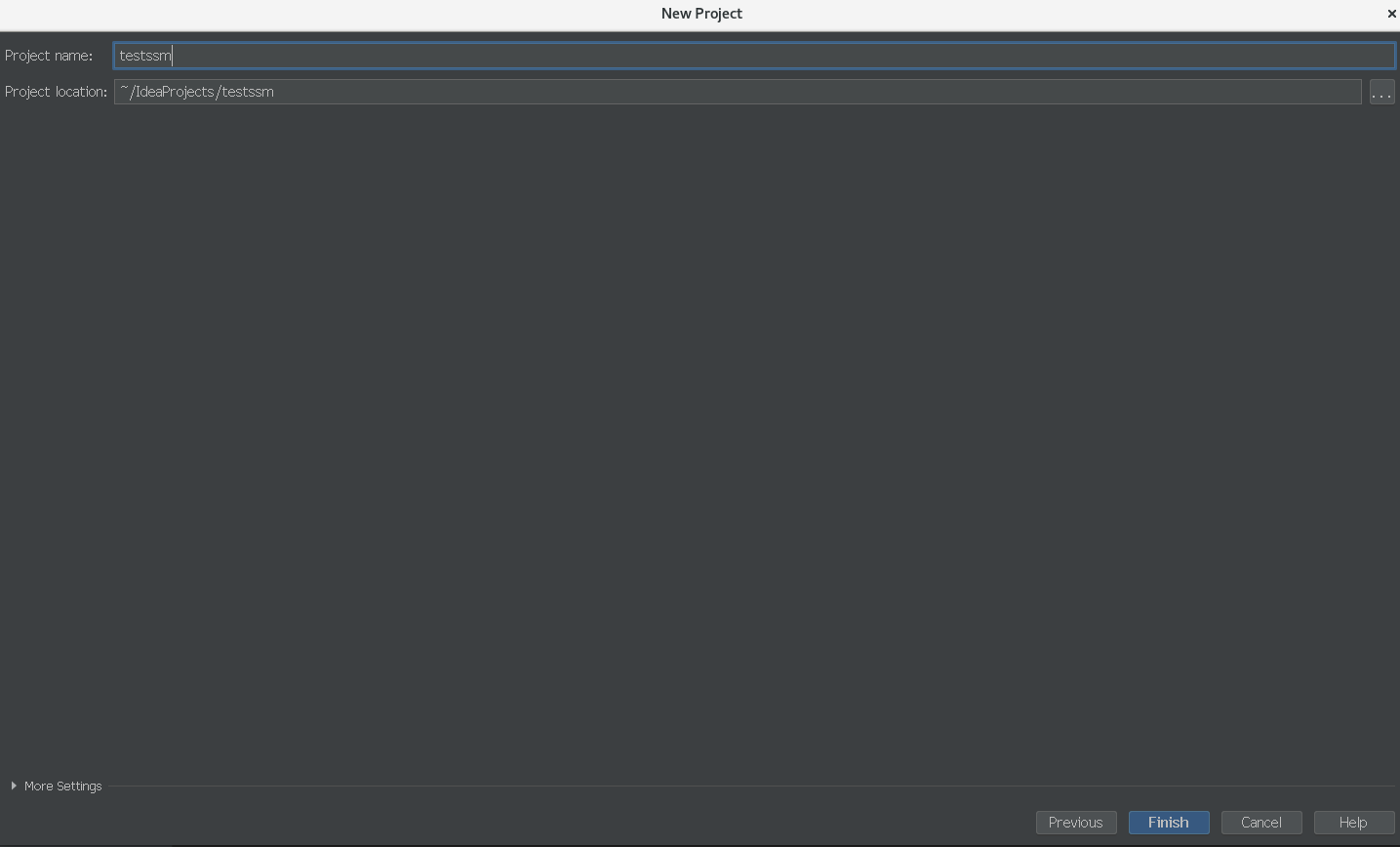

完成项目创建。

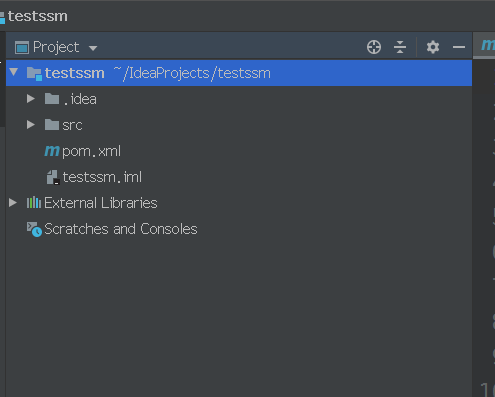

然后删除图中src目录
Alt text

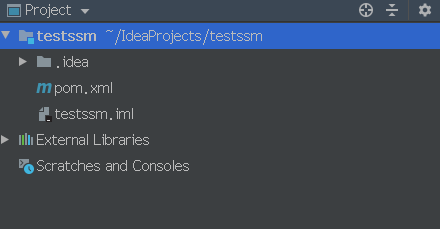

结果如下：

Alt text

最后打开pom文件，配置如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>club.kittybunny.testssm</groupId>
    <artifactId>testssm</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>

    <name>ssm</name>
    <properties>
        <spring.version>5.1.7.RELEASE</spring.version>
        <jsonlib.version>2.4</jsonlib.version>
        <spring.security.version>5.1.0.RELEASE</spring.security.version>
        <mysql-connector.version>5.1.47</mysql-connector.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-core</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aop</artifactId>
                <version>${spring.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aspects</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-beans</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context-support</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-expression</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-web</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-orm</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-tx</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jms</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-websocket</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-test</artifactId>
                <version>${spring.version}</version>
                <scope>test</scope>
                <exclusions>
                    <exclusion>
                        <groupId>commons-logging</groupId>
                        <artifactId>commons-logging</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>



            <!-- logging -->
            <dependency>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
                <version>1.7.5</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>1.2.17</version>
            </dependency>
            <dependency>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j-api</artifactId>
                <version>2.11.0</version>
            </dependency>

            <!--log4j-core -->
            <dependency>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j-core</artifactId>
                <version>2.11.0</version>
            </dependency>

            <!-- log4j-web -->
            <dependency>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j-web</artifactId>
                <version>2.11.0</version>
            </dependency>
            <!-- end of logging -->

            <dependency>
                <groupId>commons-httpclient</groupId>
                <artifactId>commons-httpclient</artifactId>
                <version>3.1</version>
            </dependency>

            <dependency>
                <groupId>javax.servlet.jsp.jstl</groupId>
                <artifactId>jstl</artifactId>
                <version>1.2</version>
            </dependency>
            <!-- Json -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>1.2.58</version>
            </dependency>

            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-annotations</artifactId>
                <version>2.9.8</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-core</artifactId>
                <version>2.9.8</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>2.9.8</version>
            </dependency>
            <!-- end of Json -->

            <!-- xstream -->
            <dependency>
                <groupId>com.thoughtworks.xstream</groupId>
                <artifactId>xstream</artifactId>
                <version>1.4.10</version>
            </dependency>

            <!-- mybatis -->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>3.4.6</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis-spring</artifactId>
                <version>1.3.2</version>
            </dependency>
            <!-- druid -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.1.9</version>
            </dependency>



            <!-- mysql -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-dbcp2</artifactId>
                <version>2.2.0</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <finalName>club-kittybunny-ssm</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>



</project>

父工程创建完成。　　

二、创建模块web，并配置

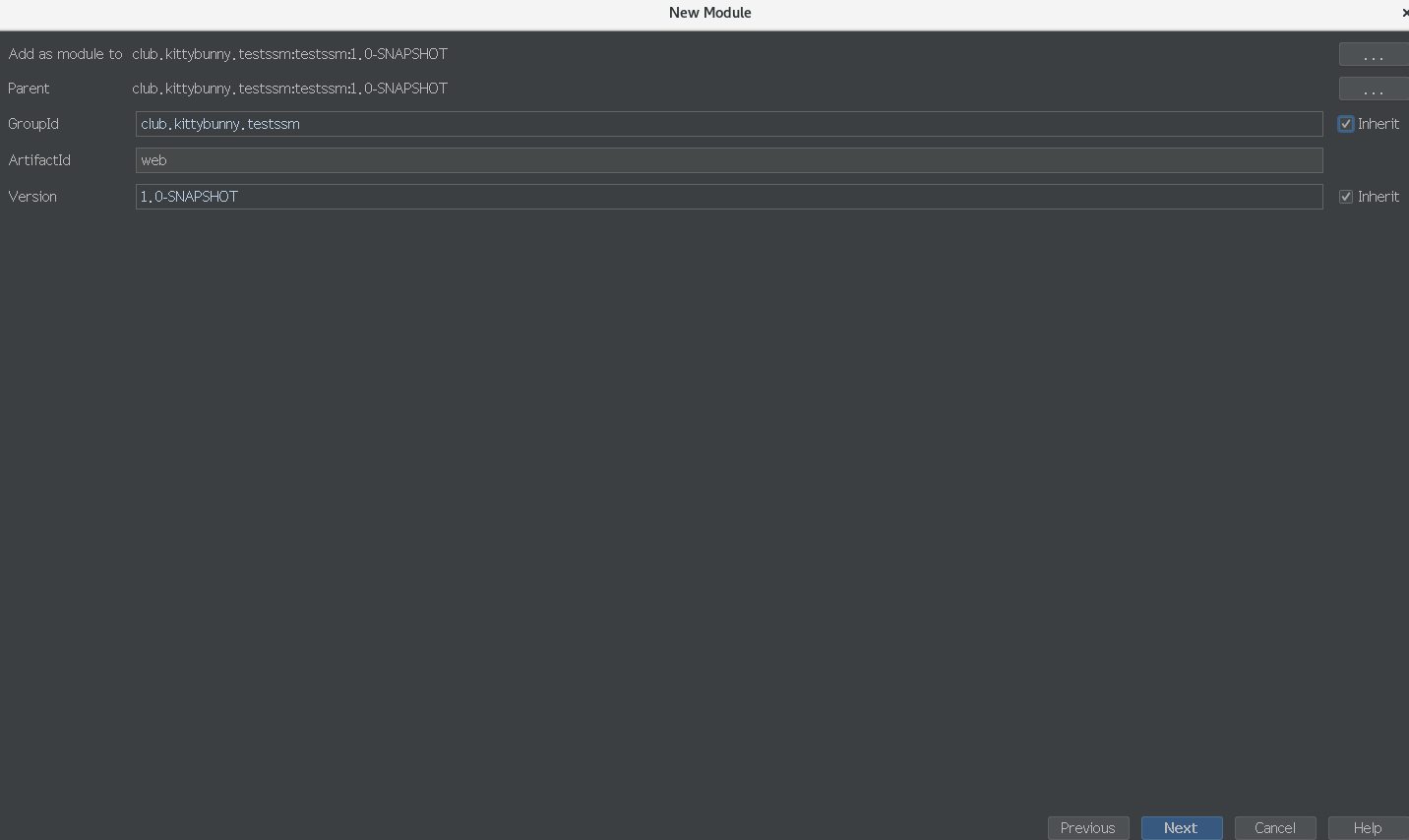

在工程内创建模块，右键项目-new-module：

只有一个输入名字的，其他都下一步
Alt text

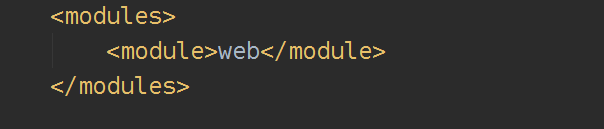

此时父工程的pom会多一点内容：
Alt text

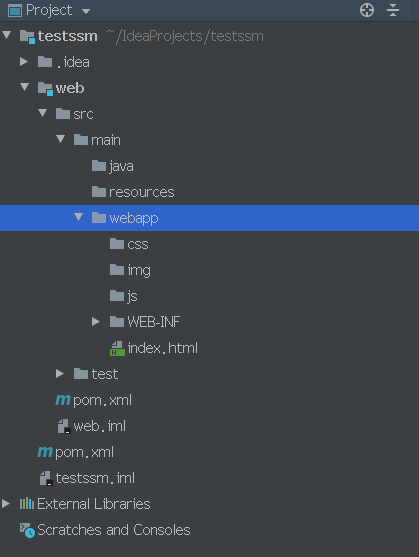

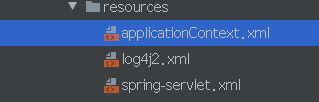

不管目前子模块什么内容，直接通过创建文件夹、文件的方式调整为下图所示：

Alt text

修改pom文件如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>testssm</artifactId>
        <groupId>club.kittybunny.testssm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>web</artifactId>
    <packaging>war</packaging>
    <name>web</name>
    <dependencies>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
        </dependency>

        <!--log4j-core -->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
        </dependency>

        <!-- log4j-web -->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>

    </dependencies>
    <build>
        <finalName>ssm-web</finalName>
    </build>

</project>

WEB-INF下创建web.xml文件，内容如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
    version="3.0">
    <display-name>ssm-main</display-name>
    <listener>
        <listener-class>org.apache.logging.log4j.web.Log4jServletContextListener</listener-class>
    </listener>

    <filter>
        <filter-name>log4jServletFilter</filter-name>
        <filter-class>org.apache.logging.log4j.web.Log4jServletFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>log4jServletFilter</filter-name>
        <url-pattern>/*</url-pattern>
        <dispatcher>REQUEST</dispatcher>
        <dispatcher>FORWARD</dispatcher>
        <dispatcher>INCLUDE</dispatcher>
        <dispatcher>ERROR</dispatcher>
    </filter-mapping>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>



    <servlet>
        <servlet-name>springDispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springDispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
    </welcome-file-list>
</web-app>

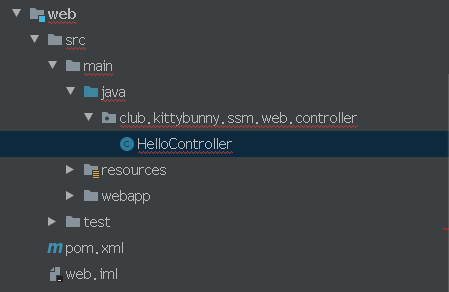

创建如下三个配置文件：

Alt text

applicationContext.xml内容：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="
                    http://www.springframework.org/schema/beans
                    http://www.springframework.org/schema/beans/spring-beans.xsd
                    http://www.springframework.org/schema/tx
                    http://www.springframework.org/schema/tx/spring-tx.xsd
                    http://www.springframework.org/schema/aop
                    http://www.springframework.org/schema/aop/spring-aop.xsd
                    http://www.springframework.org/schema/context
                    http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config />
    <context:component-scan base-package="club.kittybunny.ssm">
    </context:component-scan>

    <import resource="classpath*:spring-mybatis.xml"/>

</beans>

log4j2.xml：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="OFF" monitorInterval="1800">
    <properties>
        <property name="LOG_HOME">文档</property>
        <property name="FILE_NAME">SsmLog</property>
    </properties>


    <Appenders>
        <Console name="Console" target="SYSTEM_OUT">
            <PatternLayout pattern="%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
        </Console>

        <RollingFile name="running-log" fileName="${LOG_HOME}/${FILE_NAME}.log"
            filePattern="${LOG_HOME}/$${date:yyyy-MM}/${FILE_NAME}-%d{yyyy-MM-dd}-%i.log.gz"
            immediateFlush="true">
            <PatternLayout
                pattern="%date{yyyy-MM-dd HH:mm:ss.SSS} %level [%thread][%file:%line] - %msg%n" />
            <Policies>
                <TimeBasedTriggeringPolicy />
                <SizeBasedTriggeringPolicy size="10 MB" />
            </Policies>
            <DefaultRolloverStrategy max="20" />
        </RollingFile>
    </Appenders>
    <Loggers>

        <!-- <Logger name="com.cssweb.test.app" level="trace" additivity="true">
            <AppenderRef ref="running-log" /> </Logger> -->

        <Root level="info">
               <!-- 这里是输入到文件，很重要-->
            <AppenderRef ref="running-log" />
            <!-- 这里是输入到控制台-->
            <AppenderRef ref="Console" />
        </Root>
    </Loggers>
</Configuration>

spring-servlet.xml：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="
                http://www.springframework.org/schema/beans
                http://www.springframework.org/schema/beans/spring-beans.xsd
                http://www.springframework.org/schema/context
                http://www.springframework.org/schema/context/spring-context.xsd
                http://www.springframework.org/schema/mvc
                http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <context:annotation-config />
    <context:component-scan base-package="club.kittybunny.ssm.web" use-default-filters="false">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
        <context:include-filter type="annotation" expression="org.springframework.web.bind.annotation.RestController" />
    </context:component-scan>
    <!--<bean
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="" />
    </bean>-->


    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean
                class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
                <property name="supportedMediaTypes">
                    <list>
                        <value>application/json;charset=UTF-8</value>
                    </list>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>

    <mvc:resources location="/img/" mapping="/img/**" />
    <mvc:resources location="/css/" mapping="/css/**" />
    <mvc:resources location="/js/" mapping="/js/**" />
    <mvc:default-servlet-handler/>
</beans>

至此web部分完成。也可以直接编写一个测试类，打包部署看看。

三、创建模块mybatis，并配置

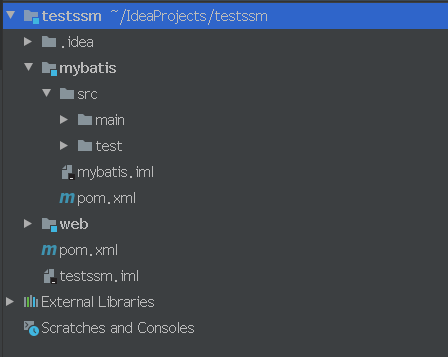

同上的方式创建一个mybatis模块：

Alt text

配置pom如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>testssm</artifactId>
        <groupId>club.kittybunny.testssm</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>mybatis</artifactId>
    <packaging>jar</packaging>
    <name>mybatis</name>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-dbcp2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
        </dependency>
    </dependencies>
    <build>
        <finalName>club-kittybunny-ssm-mybatis</finalName>
    </build>


</project>

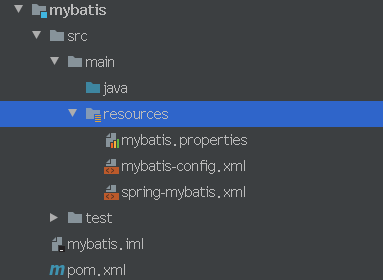

创建如下几个配置文件：

Alt text

配置mybatis.properties

1
2
3
4
5
6
db.url=jdbc:mysql://127.0.0.1:3306/bunny?useUnicode=true&characterEncoding=utf8&serverTimezone=UTC
db.username=root
db.password=123456
#db.dirverClass=com.mysql.cj.jdbc.Driver
#6.0以上用com.mysql.cj.jdbc.Driver，有的应用不支持6.0以上版本，不得不降级。
db.dirverClass=com.mysql.jdbc.Driver

配置mybatis-config.xml　

1
2
3
4
5
6
7
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
        <setting name="logImpl" value="STDOUT_LOGGING" />
    </settings>
</configuration>

配置spring-mybatis.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="
                    http://www.springframework.org/schema/beans
                    http://www.springframework.org/schema/beans/spring-beans.xsd
                    http://www.springframework.org/schema/tx
                    http://www.springframework.org/schema/tx/spring-tx.xsd
                    http://www.springframework.org/schema/aop
                    http://www.springframework.org/schema/aop/spring-aop.xsd
                    http://www.springframework.org/schema/context
                    http://www.springframework.org/schema/context/spring-context.xsd">

    <bean id="annotationPropertyConfigurerMybatis"
        class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="order" value="1" />
        <property name="ignoreUnresolvablePlaceholders" value="true" />
        <property name="locations">
            <list>
                <value>classpath:mybatis.properties</value>
            </list>
        </property>
    </bean>

    <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource" destroy-method="close">
        <property name="driverClassName" value="${db.dirverClass}"></property>
        <property name="url" value="${db.url}" />
        <property name="username" value="${db.username}" />
        <property name="password" value="${db.password}" />

        <property name="initialSize" value="1" />
        <property name="minIdle" value="1" />
        <property name="maxTotal" value="20" />

        <property name="validationQuery" value="SELECT 1" />
        <property name="testWhileIdle" value="true" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />
    </bean>

    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <tx:annotation-driven transaction-manager="transactionManager" />

    <!-- jdbcTemplate -->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!-- mybatis -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="configLocation" value="classpath:mybatis-config.xml" />

        <!-- 如果用xml方式，而不是用注解去写sql，这地方要注明xml文件的路径 -->
        <property name="mapperLocations" value="classpath:mybatis/mapper/*.xml" />
    </bean>
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="club.kittybunny.ssm.mybatis.dao" />
    </bean>
</beans>

至此配置完成，可以编写样例测试。

四、编写案例、打包部署

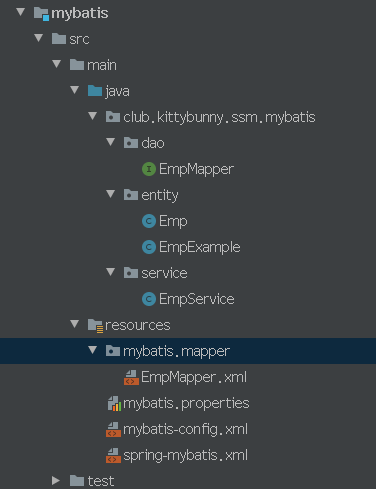

在mybatis模块中创建如下目录，路径等信息参看配置文件的内容，并自行编写样例：
Alt text

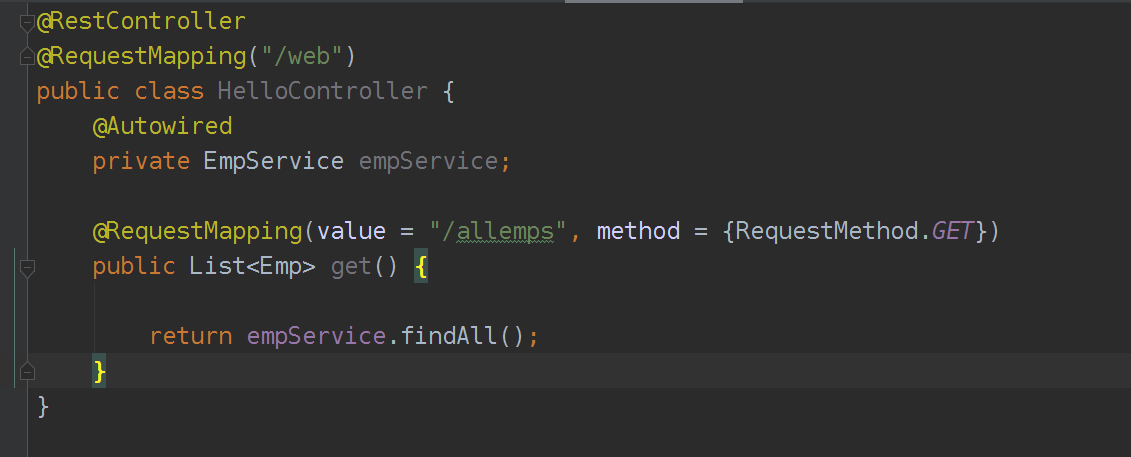

web模块中编写测试类，包路径参看配置文件：

Alt text

HelloController：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
package club.kittybunny.ssm.web.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author: bunny
 * @Description: 我是兔子我会喵，我叫喵星兔
 */
@RestController
@RequestMapping("/web")
public class HelloController {
    @Autowired
    private EmpService empService;

    @RequestMapping(value = "/allemps", method = {RequestMethod.GET})
    public List<Emp> get() {

        return empService.findAll();
    }
}

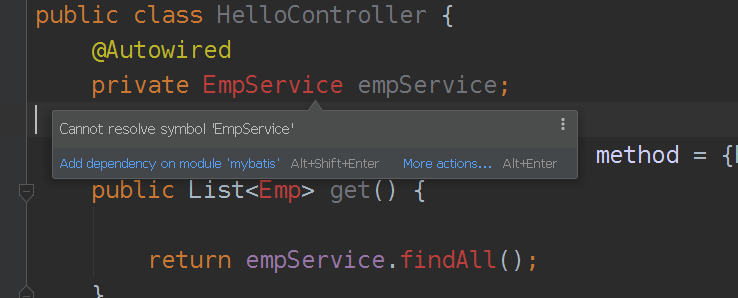

飘红问题直接根据提示引入依赖即可：
Alt text

直接Alt + Shift + Enter
Alt text

至此，案例已经完成。然后打包部署。

父工程目录下执行

mvn package

Alt text

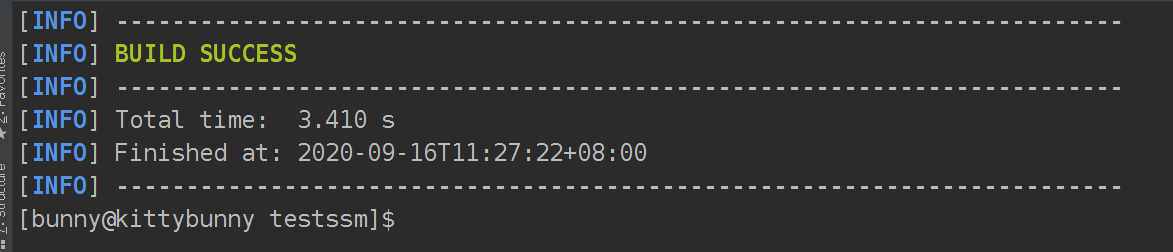

结果如下：
Alt text

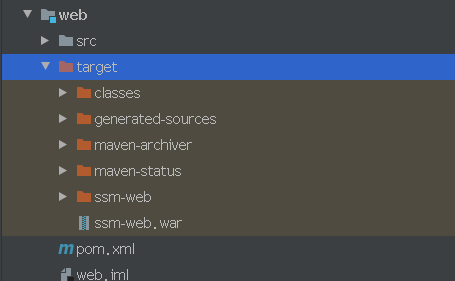

然后可以在
Alt text

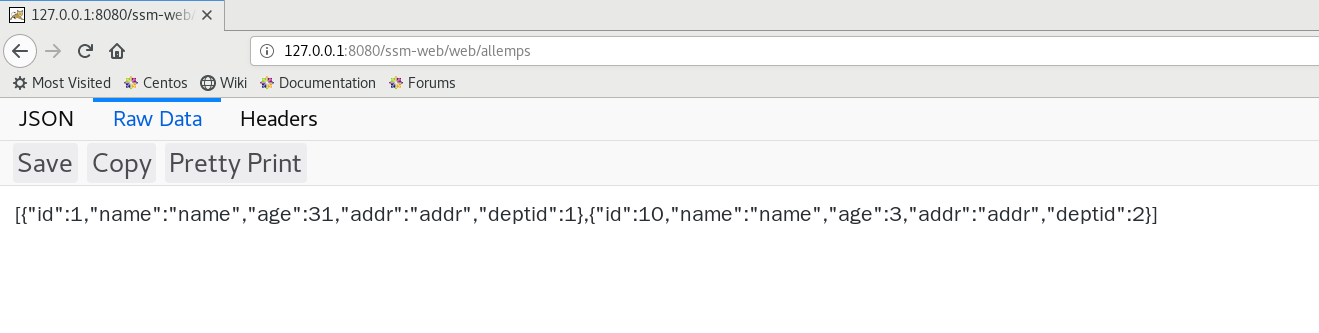

web模块下找到ssm-web.war文件，部署到tongcat即可。
Alt text

文章目录
  1. 一、创建父工程
  2. 二、创建模块web，并配置
  3. 三、创建模块mybatis，并配置
  4. 四、编写案例、打包部署
|
